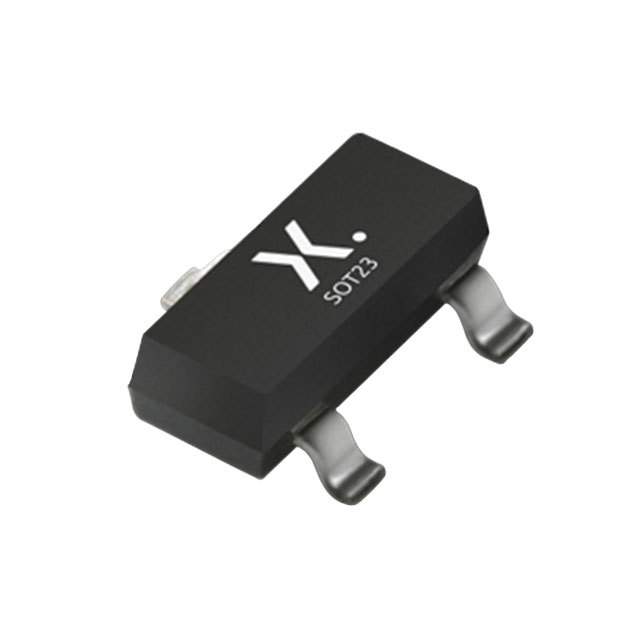

BSH203,215
P-Channel 30 V 470mA (Ta) 417mW (Ta) Surface Mount TO-236AB
Availability: In Stock
Package Type: SOT23-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSH203,215 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSH203,215
| Part Name | BSH203,215 |
| Manufacturer | Nexperia USA |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 3 |
| Maximum Drain Source Voltage (V) | 30 V |
| Width | 1.4 (mm) |
| Maximum Continuous Drain Current (A) | 470 mA |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 417 mW |
| Channel Type | P |
| Maximum Gate Source Voltage (V) | -8 V, +8 V |
| Length | 3 (mm) |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 0.68 (V) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 0.4 (V) |
| Typical Gate Charge Vgs | 2.2 nC @ 4.5 V |
| Height | 1 (mm) |
| Maximum Operating Temperature | +150 °C |
| Maximum Drain Source Resistance | 900 mΩ |
| Transistor Configuration | Single |
Inventory for the BSH203,215 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,245
|
|
Visit Site | |
|
★ Featured
|
102,000
|
3,580 x $0.08
|
Visit Site | |
| Arrow Europe |
21,000
|
|
Visit Site | |
| Verical |
9,000
|
|
Visit Site |
No issues have been reported for the BSH203,215
